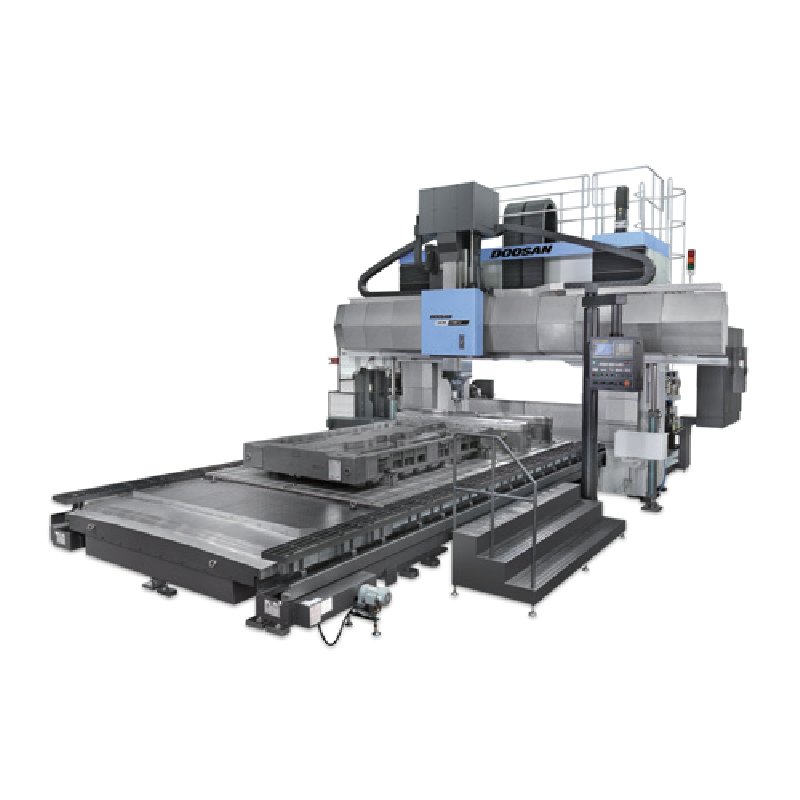

DBM / DCM Ⅱ series
Customized Double Column Machining Center
High Speed Double Column Machining Center
ดาวน์โหลดโบรชัวร์:
| Machine | X / Y / Z / W Travel | Table Size | Spindle Speed | Effective width | Motor* |
| mm (inch) | mm (inch) | (r / min) | between column_mm (inch) | kW (Hp) | |
| DBM 2030 | 3250/2500/800 | 1500 x 3000 | 6000 | 2000 (78.7) | 55/37** |
| (128.0/98.4/31.5) | (59.1 x 118.1) | {8000} | (73.8/49.6) | ||
| DBM 2040 | 4250 / 2500 / 800{1100} | 1500 x 4000 | 6000 | 2000 (78.7) | 55/37** |
| (167.3 / 98.4 / 31.5{43.3}) | (59.1 x 157.5) | {8000} | (73.8/49.6) | ||
| DBM 2540 | 4250 / 3000 / 800 / - | 2000 x 4000 | 6000 | 2500 (98.4) | 55/37** |
| (167.3 / 118.1 / 31.5 / -) | (78.7 x 157.5) | {8000} | (73.8/49.6) | ||
| DBM 2550 | 5250 / 3000 / 800 / - | 2000 x 5000 | 6000 | 2500 (98.4) | 55/37** |
| (206.7 / 118.1 / 31.5 / -) | (78.7 x 196.9) | {8000} | (73.8/49.6) | ||
| DBM 3050 | 5250 / 3500 / 800 | 2500 x 5000 | 6000 | 3000 (118.1) | 55/37** |
| (206.7 / 137.8 / 31.5) | (98.4 x 196.9) | {8000} | (73.8/49.6) | ||
| DBM 3060 | 6250 / 3500 / 800{1100} | 2500x6000 | 6000 | 3000 (118.1) | 55/37** |
| (246.1 / 137.8 / 31.5{43.3}) | (98.4 x 315.0) | {8000} | (73.8/49.6) | ||
| DBM 3080 | 8250/3500/800 | 2500 x 8000 | 6000 | 3000 (118.1) | 55/37** |
| (324.8/137.8/31.5) | (98.4 x 315.0) | {8000} | (73.8/49.6) | ||
| DCM 2740F Ⅱ | 4250 / 3200 / 700 / 1100 | 2200 x 4100 | 6000 | 2700 (106.3) | 25/22 |
| (167.3 / 126.0 / 27.6 / 43.3) | (86.6 x 161.4) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 2750FⅡ | 5250 / 3200 / 700 / 1100 | 2200 x 5100 | 6000 | 2700 (106.3) | 25/22 |
| (206.7 / 126.0 / 27.6 / 43.3) | (86.6 x 200.8) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 2760FⅡ | 6250 / 3200 / 700 / 1100 | 2200 x 6100 | 6000 | 2700 (106.3) | 25/22 |
| (246.1 126.0 / 27.6 / 43.3) | (86.6 x 240.2) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 2780F Ⅱ | 8250 / 3200 / 700 / 1100 | 2200 x 8100 | 6000 | 2700 (106.3) | 25/22 |
| (324.8 / 126.0 / 27.6 / 43.3) | (86.6 x 318.9) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 3250FⅡ | 5250 / 3700 / 700 / 1100 | 2700 x 5100 | 6000 | 3200 (126.0) | 25/22 |
| (206.7 / 145.7 / 27.6 / 43.3) | (106.3 x 200.8) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 3260F Ⅱ | 6250 / 3700 / 700 / 1100 | 2700 x 6100 | 6000 | 3200 (126.0) | 25/22 |
| (246.1 / 145.7 / 27.6 / 43.3) | (106.3 x 240.2) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 3280F Ⅱ | 8250 / 3700 / 700 / 1100 | 2700 x 8100 | 6000 | 3200 (126.0) | 25/22 |
| (624.8 / 145.7 / 27.6 / 43.3) | (106.3 x 318.9) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 3780FⅡ | 8250 / 4200 / 1000 / 1100 | 3200 x 8100 | 6000 | 3700 (145.7) | 25/22 |
| (324.8 / 165.4 / 39.4 / 43.3) | (126.0 x 318.9) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 37100FⅡ | 10250 / 4200 / 1000 / 1100 | 3200 x 10100 | 6000 | 3700 (145.7) | 25/22 |
| (403.5 / 165.4 / 39.4 / 43.3) | (126.0 x 397.6) | { 4000, 12000 } | (33.5/29.5) | ||
| DCM 4280FⅡ | 8250 / 5000 / 1000 / 1100 | 3500 x 8100 | 6000 | 4200 (165.4) | 25/22 |
| (324.8 / 196.9 / 39.4 / 43.3) | (137.8 x 318.8) | { 4000, 12000 } | (33.5/29.5) | ||
| { } : Option * 30min/Cont. ** S3 25%/Cont. | |||||
